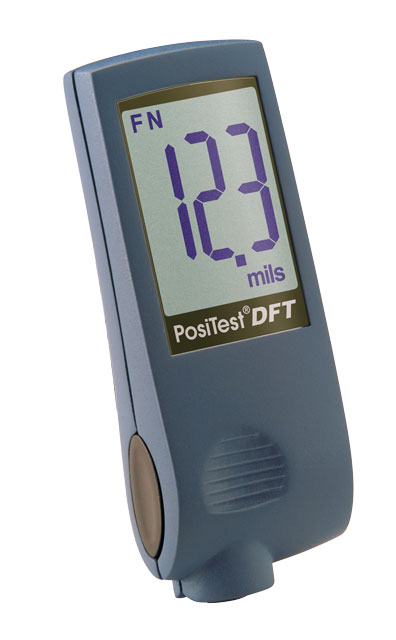

DFT-GEN1 PosiTest DFT Coating Thickness Gauge

Made in USA
PosiTest DFT Coating Thickness Gage
Click images to enlarge.

Please visit the new PosiTest DFT page by clicking here

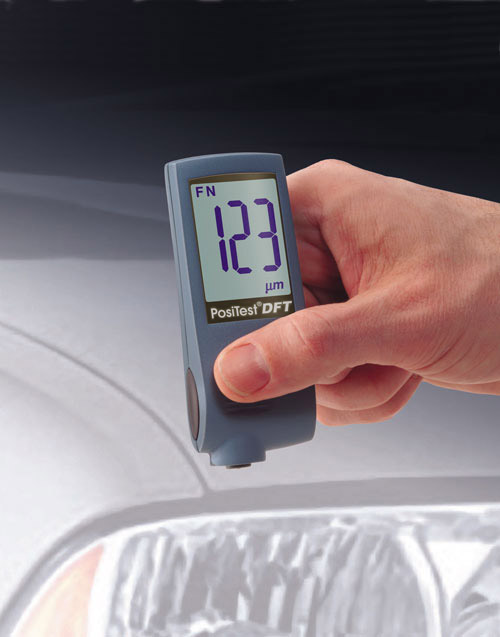

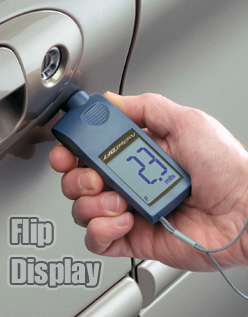

dft neasuring car body paint thicknessThe DFT Coating Thickness Gage measures the thickness of coatings on ALL metals. Accurate and economical the DFT is the ideal instrument for Powder Coaters, Paint Applicators, Coating Inspectors... Easy-to-read oversized LCD display is reversible for reading when inverted.

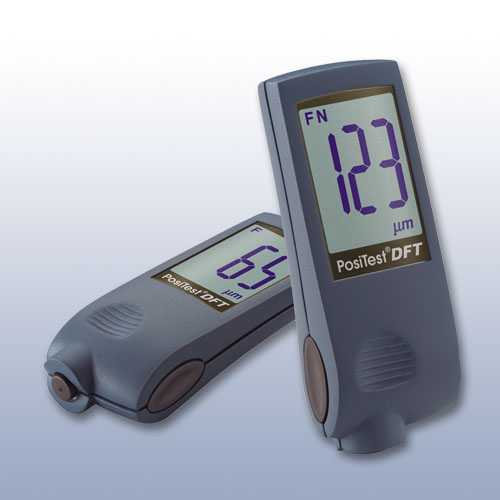

Two Models

  • DFT-F
    measures non-magnetic coatings on steel.
  • DFT-FN
    measures both non-magnetic coatings on steel AND non-conductive coatings on aluminum, brass, etc.  Automatically recognizes the substrate and takes a measurement.

Features

  • Includes NIST Traceable Calibration Cert
  • No calibration required for most applications
  • Strong, wear resistant, ruby-tipped probe
  • V-groove in probe for positioning on cylindrical parts
  • Basic instructions on the back of each gauge
  • ZERO feature for rough or curved surfaces
  • Handy RESET feature when no zero reference is available
  • Audible and visible measurement indication
  • Mils/Microns switchable
  • 2-Year Warranty

DFT Demonstration Video

Specifications

Measuring Range0 - 40 mils ( 0 - 1000 µm)
Accuracy±(0.1 mils + 3%) (±(2µm + 3%))
Size4 x 1.5 x 0.9 in (100x38x23 mm)
Weight2.5 oz (70 g)

Related Products

Click image for more info
Protective Pouch
- Pouch protects your PosiTest DFT while keeping it within easy reach
- Belt clip secures pouch on the belt
Certified Plastic Shims
Click image for more info
CPS
Certified Plastic Shims / Foils for Coating Thickness Gauge Calibration and Verifications

Complete Kit

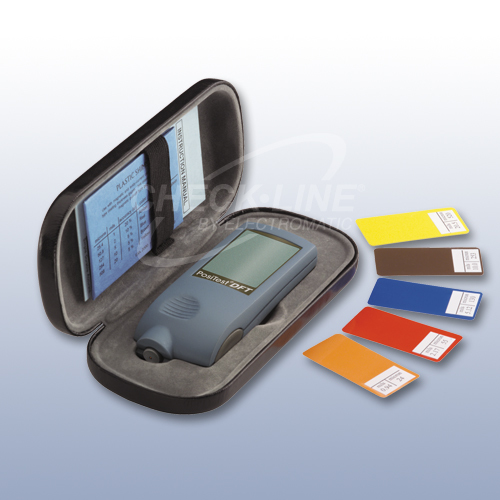

The DFT comes complete with built-in probe, wrist strap, plastic shims, calibration certificate, hard shell storage case, AAA battery, instructions, and two (2) year warranty.
