Measuring Range in Steel0.050 - 19.99 inches
1.27 - 508.0 mm

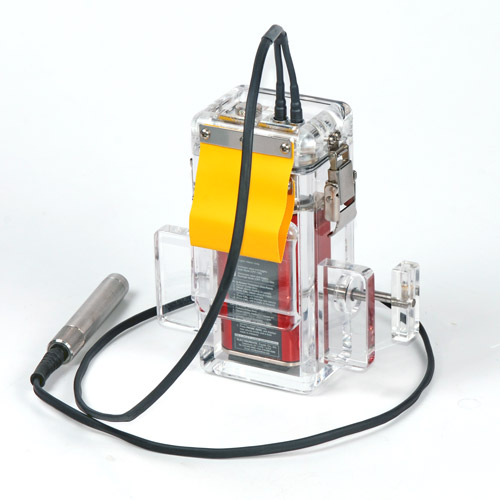

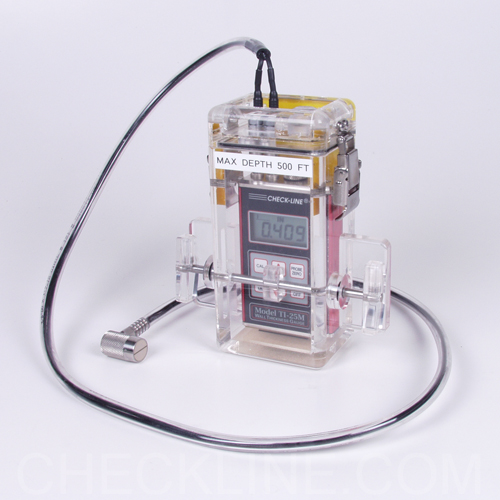

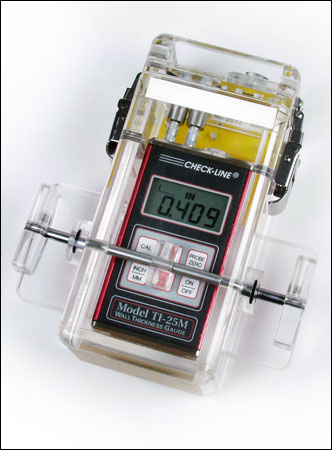

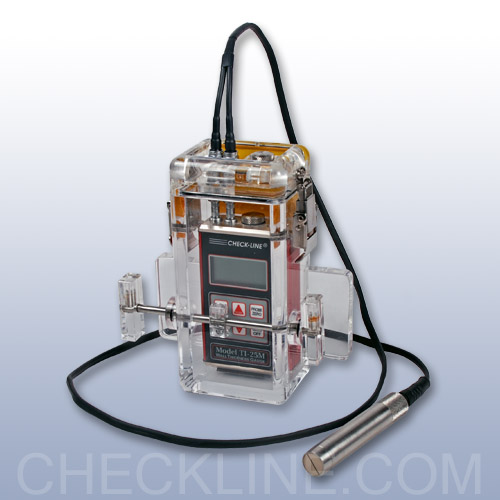

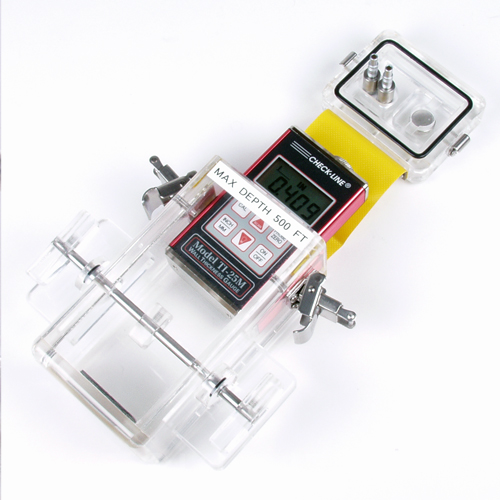

The new CHECK-LINE TI-25M-UWM Underwater Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals at depths of up to 300 feet (91.44 M).
The TI-25M-UWM can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
- Resolution of 0.001 inch (0.01 mm)
- Large, backlit LCD display retains last reading
- Simple operator controls virtually eliminate training
- Special-purpose probes are offered for a variety of applications
- 300 feet depth rating
- Clear plexiglass construction, Stainless steel connectors, latches, and control bar
- Switch-selected units for inches or mm
- CE Certified
- NEW Elastic wrist strap secures the gauge during dives
The TI-25M-UWM is supplied as a complete kit including gauge, underwater enclosure, underwater transducer, coupling fluid, instruction manual and calibration certificate in a foam lined hard plastic carrying case.
| Range in Steel | 0.050-19.99" (1.27 - 508.0 mm) |
| Resolution | .001" (0.01 mm) |
| Display | 4½ - Digit, 0.5" Backlit LCD |
| Velocity Range | 6,500-33,000 ft./sec (2000-10,000 m/sec.) |

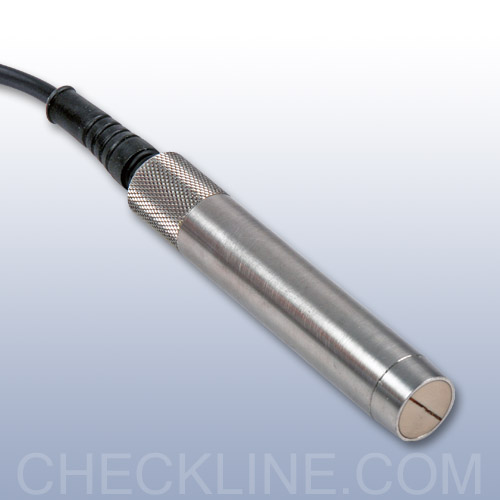

| Probe | 5 MHz, 0.5" Diameter |
| Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
| Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C) Material: -0 to 200° F (-20 to 100° C Special high temperature probes are optionally available. |
| Battery Type | Two AA batteries |
| Battery Life | 200 hours |
| Weight | 2.8 pounds |
| Size | 3.5 x 7.5 x 2.75" (63.5 W x 190.5 H x 69.85 D mm) |
| Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty | Gauge: 5 Years Probe: 90 Days Enclosure: 1 year |
| Item | Description | Price | ||
|---|---|---|---|---|
Replaced by TI-UMX2 - Please contact us for pricing and availability. | $ | |||
| Accessories | ||||
1/2" diameter, 5.0 MHz dual element transducer for TI-25M-UWM, Top in, Potted | $575.00 | |||
SoundSafe Coupling Fluid - 12 oz / 354 ml - NSN: 6635-01-553-0559 | $30.00 | |||
BATT-RC4AA-WC | 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit | $35.00 | ||
MC-UMX | Maintenance Kit for TI-25-UWM Undserwater Enclosure including repalcement O-Rings & Lubricant | $50.00 | ||
