Pulse-Echo (PE) Mode (Pit & Flaw Detection) - 0.040 to 8.00 inches / 1.00 to 199.9mm
Echo-Echo (EE) Mode (Through Paint & Coatings) - 0.100 to 1.000 inch / 2.54 to 25.40 mm
Total Measuring Range (Probe Dependant)
Pulse-Echo (PE) Mode (Pit & Flaw Detection) - 0.025 to 36.000 inches / 0.63 to 914.4 mm
Echo-Echo (EE) Mode (Through Paint & Coatings) - 0.100 to 1.000 inch / 2.54 to 25.40 mm

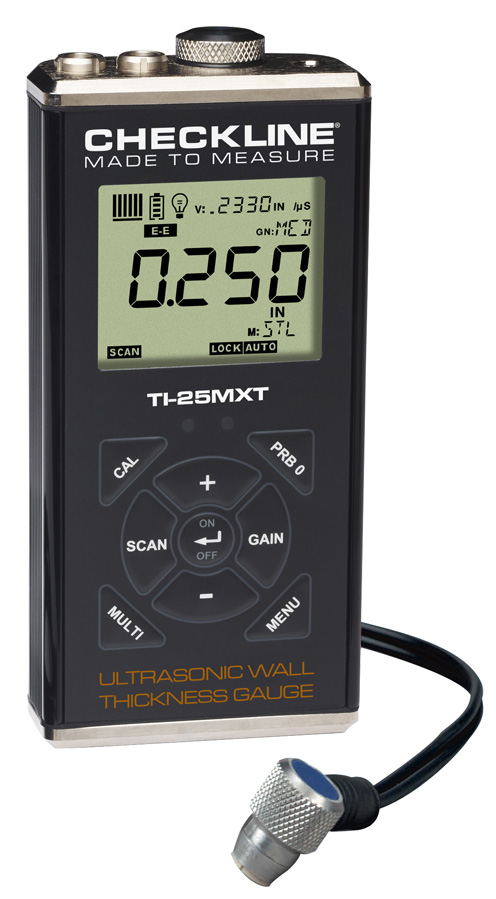

The new CHECK-LINE TI-25MXT Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics from one side. When operated in E-E Mode (Thru-Paint Mode), the coating is eliminated from the reading and the gauge will display only the thickness of the metal wall.
TI-25MXT Features include Automatic or Manual Probe Zero maximizing accuracy, 5-position Gain Adjustment to help located the correct backwall echo and to penetrate the walls on sound-attenuating materials such as cast metals and thick materials. It also features Differential mode, Hi-Low Alarms with audible and visual indicators and Scan mode that captures the minimum thickness at 100 measurements per second (100 Hz). It also includes a special Velocity Mode to measure in terms of velocity for nodularity testing.
The gauge and probe have a protection rating of IP67, is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions. The TI-25MXT is covered by a 5-Year Limited Warranty, CE-certified and is proudly Made in the USA.
The TI-25MXT can be used with any of the following hi-damped dual-element transducers specifically designed for use with E-E Thru-Paint Mode.
T-101-2700, 3/16" Diameter, 5.0 MHz Hi-damped transducer for thru paint measurement
T-101-3700, 3/16" Diameter, 7.5 MHz Hi-damped transducer for thru paint measurement
T-102-2700, 1/4" Diameter, 5.0 MHz Hi-Damped transducer for thru paint measurement - Standard Probe
T-102-3700, 1/4" Diameter, 7.5 MHz Hi-Damped Transducer for thru paint measurement
T-104-2700, 1/2" Diameter, 5.0 MHz Hi-Damped Transducer for thru paint measurement
T-104-9700, 1/2" diameter, 3.5 MHz Hi-Damped transducer for thru paint measurement
- Includes NIST Traceable Calibration Certificate
- Includes both Pulse-Echo Mode (Pit & Flaw Detection) and Echo-Echo Mode (Through Paint & Coatings Mode)
- Using the standard probe T-102-2700, the gauge will read thru 0.040" coating thickness (1 mm)
- Using one of the optional probes T-104-2700, the gauge will read thru 0.075" coating thickness (1.9 mm)
- Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
- 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
- Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
- Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
- Differential mode, Hi-Low Alarms with audible and visual indicators
- User-selected Manual or Auto Zero of Transducer
-
The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
to provide trouble-free operation under the toughest field conditions - Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
- Selectable Backlight ON/OFF/AUTO
- Resolution of 0.001 inch (0.01 mm)
- Warranty: Gauge: 5 Years Probes: 90 Days
- Made in USA
Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) | |
Minimum Radius for Concave Surfaces | 3" (76.2 mm) | |
Minimum Headroom | 1" (25.0 mm) | |
Minimum Sample Diameter | 0.150" (3.8 mm) | |
Minimum Substrate Thickness - F | na | |
Minimum Substrate Thickness - NFe | na |
Range in Steel | Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters) Echo-Echo Mode (Through Paint & Coatings) measures from 0.100 to 1.000 inch (2.54 to 25.40 millimeters) (range depends upon probe selected) - five probes to choose from |
Resolution | 0.001 inch (0.01 mm) |
Velocity Range | 0.0120 to .7300 in/μs. 305 to 18,542 meters/sec |
Probe (Standard) | 1/4", 5 MHz Hi-Damp Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2700 |
Probes (optional) | 1 to 10 MHz, 3/16" up to 1 inch (custom probes available) |
Probe Wearface | PEEK (Polyethylethylkytone) |
Cable | 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors |
LCD Display | Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes |
Display Backlight | Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options |
Display Update Rate | 10 Hz (10 updates/sec) |
Temp. Limits | Ambient: -30 to 75° C (-22 to 167° F) Material: -20 to 100° C (0 to 200° F) High temperature probes available |
Battery Type | 2x AA batteries (rechargeable batteries can be used) |
Battery Life | 45 hours continuous use |
Weight | 308 grams (11 ounces) |
Dimensions | 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25") |

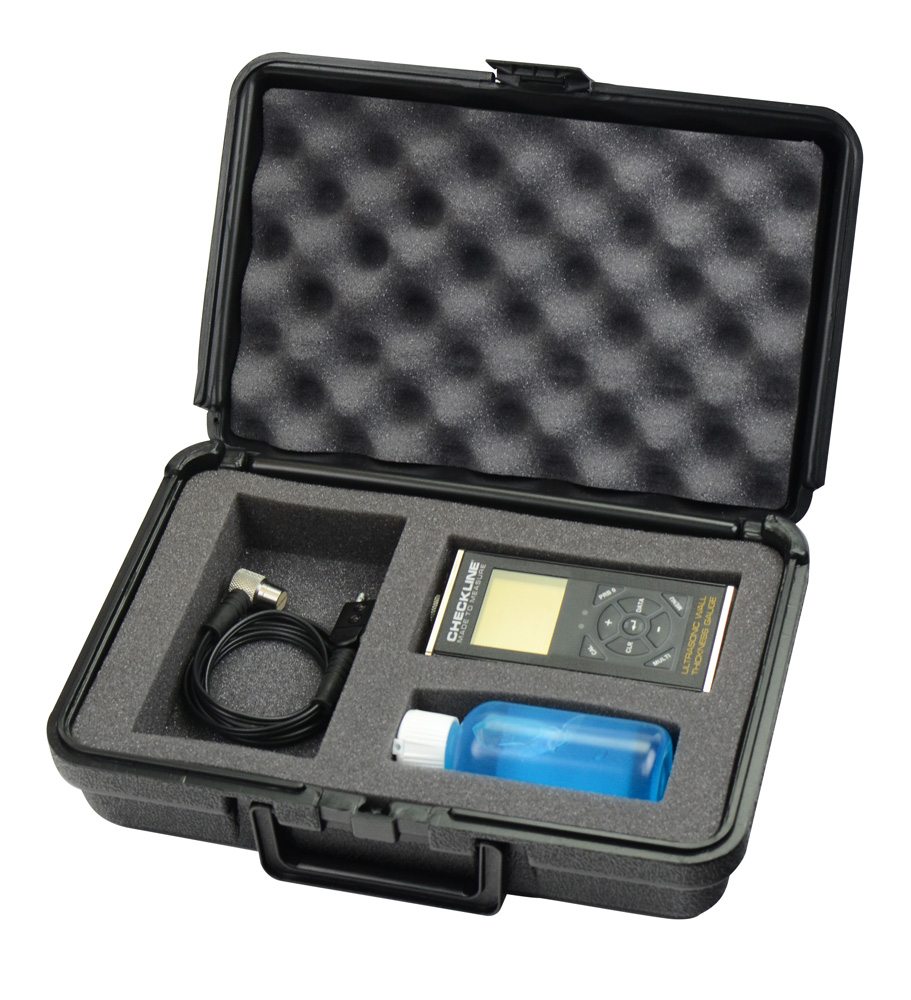

Accessories | Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
Housing | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
Housing Rating | IP65 |
Certifications | NIST Traceable and MIL-STD-45662A |
Keypad | Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys |
Pulse Repetition Frequency (PRF) | 200 Hz (200 pulses/sec) |
To Lock Settings | With gauge powered off, press and hold the "+" key while powering on the gauge The LOCK icon will be illuminated on the Display |
To unLock Settings | With gauge powered off, press and hold the "-" key while powering on the gauge The LOCK icon will turn off |
GAIN Adjustment | Adjustable GAIN 5-position (VLOW, LOW, MED, HIGH, VHI), in 3dB steps, 40-52dB |
Time Dependent Gain (TDG) | Used in both pulse-echo (P-E) and Echo-Echo (E-E) modes depending on transducer and frequency selected |
Measuring Mode | Pulse-Echo (P-E), Echo-Echo (E-E, Thru-Paint Mode), Scan, Differential, Alarm and VX-velocity |
Pulser | 150 volt square wave pulser |
Warranty | Gauge: 5 Years Probes: 90 Days |
Item | Description | Price | ||
---|---|---|---|---|
Through-Paint Ultrasonic Thickness Gauge Kit with T-102-2700 Probe | $1,975.00 | |||
TI-25MXT-WOP | Through-Paint Ultrasonic Thickness Gauge Kit - WITHOUT PROBE | $1,615.00 | ||
Accessories | ||||
1/4" diameter, 5.00 MHz, dual element, Hi-Damped transducer (Standard Probe for TI-25MXT) | $360.00 | |||
Protective Rubber Boot for TI / ZX Series Small Body Ultrasonic Thickness Gauges | $95.00 | |||
4 Step Steel Test Block, 0.1 / 0.2 / 0.4 / 0.6 inch - Uncertified, supplied in plastic case | $125.00 | |||
V-Block Transducer Holder (For 3/16" & 1/4" Transducers only), F-000-7001 | $170.00 | |||
SoundSafe Coupling Fluid - 12 oz / 354 ml - NSN: 6635-01-553-0559 | $30.00 | |||
BATT-RC4AA-WC | 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit | $35.00 | ||
Alternate Probes/Transducers for Special-purpose Applications | ||||
T-101-2700 | 3/16" Diameter, 5.0 MHz Hi-damped transducer for thru paint measurement, Side In, Potted | $360.00 | ||
T-101-3700 | 3/16" Diameter, 7.5 MHz dual element transducer, Hi-damped transducer, Side in, Potted | $360.00 | ||
T-102-3700 | 1/4" diameter, 7.5 MHz dual element transducer, Hi-Damped, Side in, Potted | $360.00 | ||
1/2" Diameter, 5.0 MHz dual element transducer, Hi-Damped, Side in, Potted | $375.00 | |||
T-104-9700 | 1/2" diameter, 3.5 MHz Hi-Damped transducer for thru paint measurement | $375.00 | ||
1/4" diameter, 5.0 MHz dual element transducer Hi-Temp 650 F / 343 C, Hi-Damped for Thru-Coat Gauges | $420.00 | |||
1/2" diameter, 5.0 MHz dual element transducer, Hi-Temp (650 F/343 C) , Top in, Potted | $445.00 |
